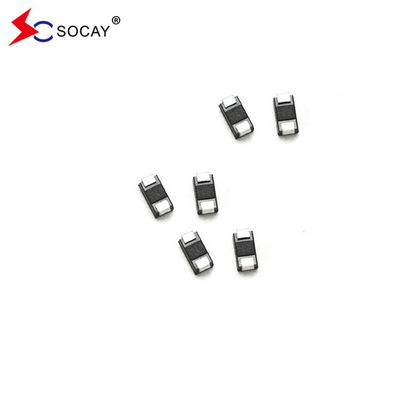

33V Bi-directional SMD TVS Diode SMAJ33CA, 53.3VC IPP 7.50A 400W Fast Delivery Time

5000PCS
MOQ
Negotiable
Price
33V Bi-directional SMD TVS Diode SMAJ33CA, 53.3VC IPP 7.50A 400W Fast Delivery Time
Features Gallery Product Description Request A Quote
Features
Specifications
SMAJ33CA Name: TVS Diodes
Package Type: DO-214AC/SMA
SMAJ33CA Vrwm: 33.0V
Vbr@It (Min.): 36.70V
Vbr@It (Max.): 40.60V
SMAJ33CA It: 1mA
Vc@Ipp: 53.3V
SMAJ33CA Ipp: 7.50A
SMAJ33CA Ir@Vrwm: 5μA
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMAJ33CA
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

33V Bi-directional SMD TVS Diode SMAJ33CA, 53.3VC IPP 7.50A 400W Fast Delivery Time



SMD TVS Diode SMAJ33CA DATASHEET:  SMAJ_v2207.1.pdf







SMD TVS Diode SMAJ33CA Maximum Ratings (TA=25℃ unless otherwise noted):

SMD TVS Parameter Symbol SMD TVS Value Unit
SMD TVS Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 400 Watts
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table Amps
Power Dissipation on Infinite Heat Sink at TL=75°C PM(AV) 1.0 Watt
SMD TVS Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 40 Amps
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) VF 3.5/5.0 Voltage
SMD TVS Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 ℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.







SMD TVS Part Number SMD TVS Marking

SMD TVS Reverse

Stand-Off

Voltage VRWM(V)

SMD TVS Breakdown

Voltage VBR (V)

@IT

SMD TVS Test

Current

IT (mA)

SMD TVS Maximum

Clamping

Voltage VC @IPP (V)

SMD TVS Maximum

Peak

Pulse

Current IPP (A)

SMD TVS Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMAJ30A SMAJ30CA CK YK 30.0 33.30 36.80 1 48.4 8.26 5
SMAJ33A SMAJ33CA CM YM 33.0 36.70 40.60 1 53.3 7.50 5
